REAOX - Smart Jewelry RFID Tag (Fold Design)

Minimalist Design · Intelligent Traceability

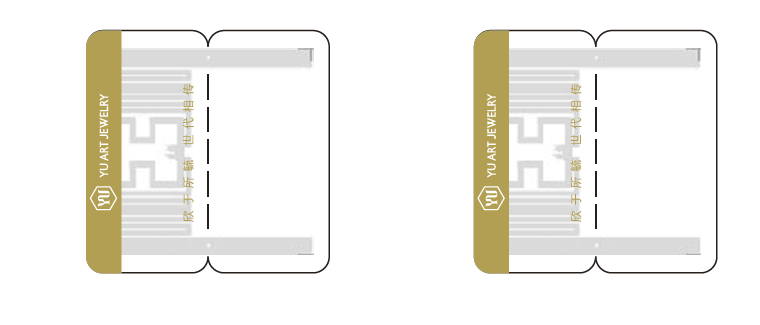

Fold-over design without redundant tails maintains the clean elegance of jewelry displays.

Optimized for rapid identification in sorting, outbound tracking, and retail environments.

Only 0.3mm thick, ensuring a comfortable feel while providing moisture and tear resistance.

Physical Specifications

Unfolded Dimensions	30mm × 30mm × 0.3mm
Folded Dimensions	30mm × 15mm × 0.3mm
Material	PET
Mounting	Fold-and-stick, directly to hangstrings or jewelry
Format	Roll-form; Supports online RFID printing and encoding

Core Performance

Frequency Band	902MHz ～ 928MHz
Standard	EPC Class1 Gen2 (ISO18000-6C)
Chip	NXP UCODE7
Read Range	0m ～ 3m (depends on reader performance)
Data Area	128-bit EPC (No User Memory)

Typical Applications

Display	Ideal for high-end watches and jewelry where aesthetics and security are paramount.
Inventory	Non-contact rapid stocktaking using handhelds or inventory boxes.
Tracking	Digital tracking for inbound/outbound logistics and internal transfers.
Interactive	Works with smart trays to capture fitting data and aid sales.
