REAOX - Smart Jewelry RFID Tag (Trifold Design)

Premium Craftsmanship · Extreme Protection

PET and white film composite with a trifold design protects the chip from physical impact and bending.

Material balances flexibility and strength to withstand frequent customer trials in retail stores.

Built-in NXP UCODE7 supports instantaneous counting during bulk inbound and outbound logistics.

Specifically developed for jewelry sorting, tracking, and all-scenario digital retail operations.

Physical Specifications

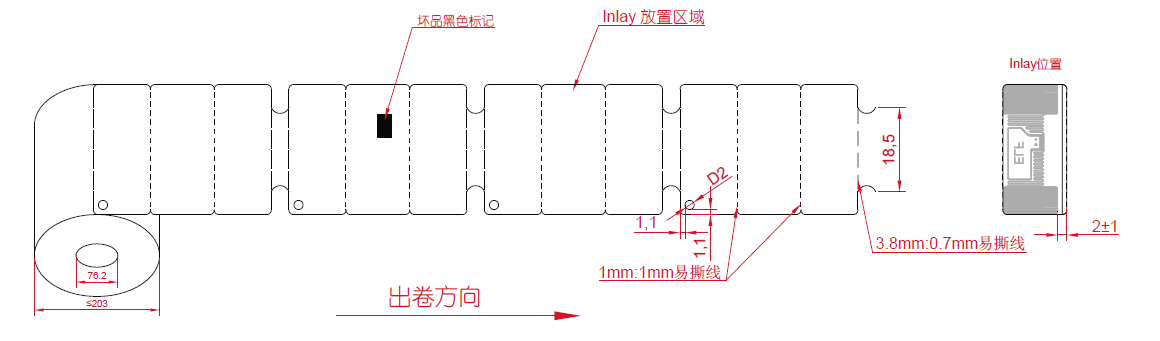

Unfolded Dimensions	42mm × 32mm × 0.3mm
Folded Dimensions	32mm × 15mm × 0.5mm
Material	PET and White Film Composite
Structure	Trifold fold-and-stick, reinforced chip protection zone
Printing	Supports all industrial RFID printers for encoding and custom printing

Core Performance

Frequency Band	902MHz ～ 928MHz
Standard	EPC Class1 Gen2 (ISO18000-6C)
Chip	NXP UCODE7
Read Range	0m ～ 3m (depends on environment and equipment)
Data Area	128-bit EPC (No User Memory)

Typical Applications

Sorting	Automated, accurate allocation of jewelry orders with smart cabinets.
Verification	Instant bulk verification using inventory boxes for zero-error shipping.
Inventory	Supports daily rapid stocktaking and non-contact inventory cycles.
Retail	Works with smart trays to link product stories and improve conversion rates.

Smart Jewelry RFID Tag
