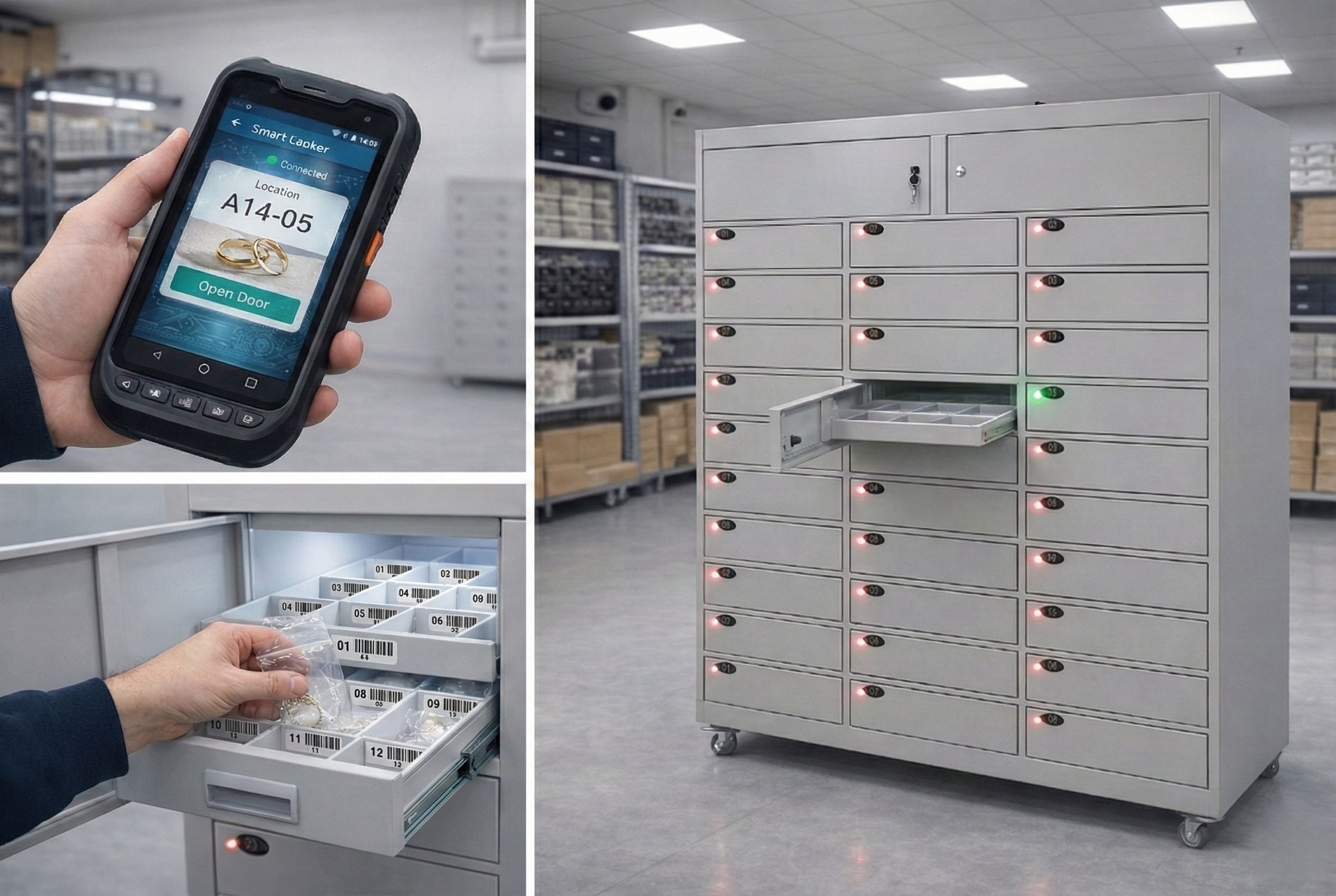

SC-200 Smart Electronic Sorting Cabinet

Digital Precision · Secure Access

Features 30 individually controlled smart compartments, optimized for high-volume jewelry order fulfillment and secure asset distribution.

Seamlessly integrates with REAOX U901 and RX series RFID terminals for wireless, automated door triggering and item-to-door binding.

Equipped with high-sensitivity sensors providing real-time feedback on door states (Open/Closed), ensuring a complete digital audit trail.

Constructed from 1.2mm cold-rolled steel with an eco-friendly electrostatic coating for superior durability in busy retail back-offices.

Critical Retail Scenarios

✦ Pick-to-Light Sorting: Automated compartment opening triggered by RFID handhelds reduces sorting errors by 99% during order fulfillment.

✦ Secure VIP Returns: Managed storage for high-value items pending audit or cleaning, with full electronic logs of every access event.

✦ Inventory Buffer Management: Acts as a smart staging area between warehouse intake and display counter stocking.

Physical Build & Form Factor

Form Factor	30-Door Configuration (Standard)
Chassis Material	1.2mm High-strength Cold-rolled Steel
Surface Finish	Electrostatic Powder Coating (Anti-corrosion/Anti-scratch)
Mobility	4 Industrial Swivel Silent Casters with independent brakes
Customization	Compartment dimensions can be tailored to specific jewelry box sizes

Electronics & Control

Actuator Technology	Industrial Pulse-mode Electronic Lock (DC 12V/24V)
Control Interface	Wireless Protocol Linkage with REAOX RFID Terminals
Sensing Logic	Built-in Hall-effect sensors for real-time door state feedback
Power Supply	AC 110V-220V / 50-60Hz
Power Rating	Standby < 8W; Max Operational < 50W
Environment	Temp: -10°C to +45°C; Humidity: 5% to 85% (Non-condensing)

Software & Synergy

Compatible Terminals	REAOX Swing-U901 / RX Series RFID Handhelds
Connectivity Architecture	Encrypted Wireless Protocol / Local Network Integration
Audit Capabilities	Cloud-ready event logging (User, Timestamp, Action)
Safety Fail-safe	Mechanical emergency override for power contingency

Standard Package Contents

✔SC-200 Smart Electronic Sorting Cabinet (30 Doors)

✔Master Intelligence Control Unit (Pre-installed)

✔Industrial Power Cord & Grounding Safety Kit

✔4x Heavy-duty Swivel Casters with Brakes

✔Technical Deployment Manual & API Documentation

* Note: The SC-200 is part of the REAOX smart retail ecosystem, designed for high-value asset traceability.
