High-Volume Speed · Logistic Excellence
Optimized for Bulk Retail

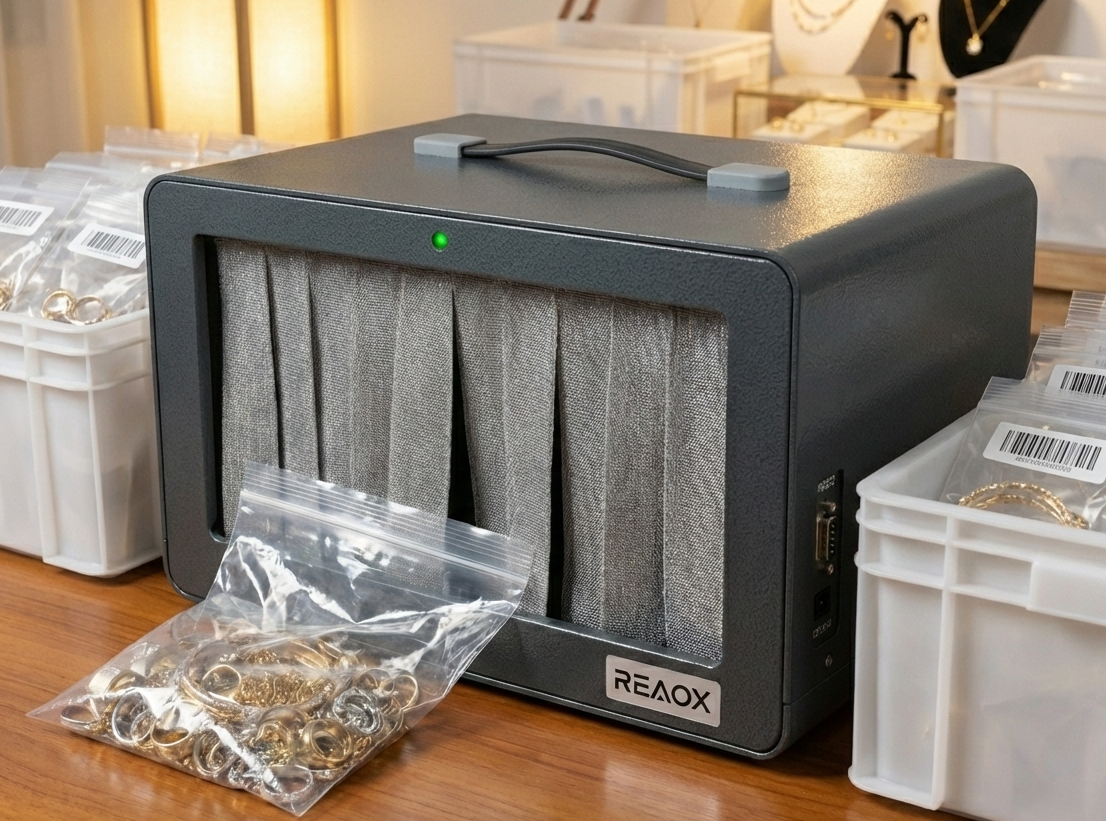

Engineered for massive in-bound and out-bound jewelry batches, enabling rapid verification of un-opened packages without item handling.
400 Tags in 28 Seconds
Demonstrates industry-leading throughput; field tests show 400 dense jewelry tags identified in just 28 seconds, maximizing logistical turnover.
ThingMagic Core Engine
Built with the world-renowned ThingMagic M6e UHF module, ensuring extreme precision in ultra-dense tag environments.
360° Near-field Array
Features 4 integrated high-gain antennas to create a zero-blind-spot sensing zone, effectively mitigating metal interference and tag shielding.
Bulk Retail Application Scenarios
✦
Logistics Distribution Hubs: Perform rapid audit of sealed bags containing hundreds of tagged jewelry items during warehouse intake.
✦
Inter-Store Transfers: Instantly verify shipments between flagship stores and branch locations with 100% data accuracy.
✦
High-Value Audit: Conduct daily massive inventory reconciliations for high-density jewelry counters and stockroom vaults.
✦
Manufacturing Out-bound: Final verification of packed jewelry orders before shipping to global retail networks.
Retail-Specific Performance
| Batch Throughput | Successfully identifies 400+ high-density RFID tags in a single un-opened package within 28 seconds. |
|---|
| Antenna Calibration | Four-point Near-field array specifically tuned for small-form-factor jewelry labels. |
|---|

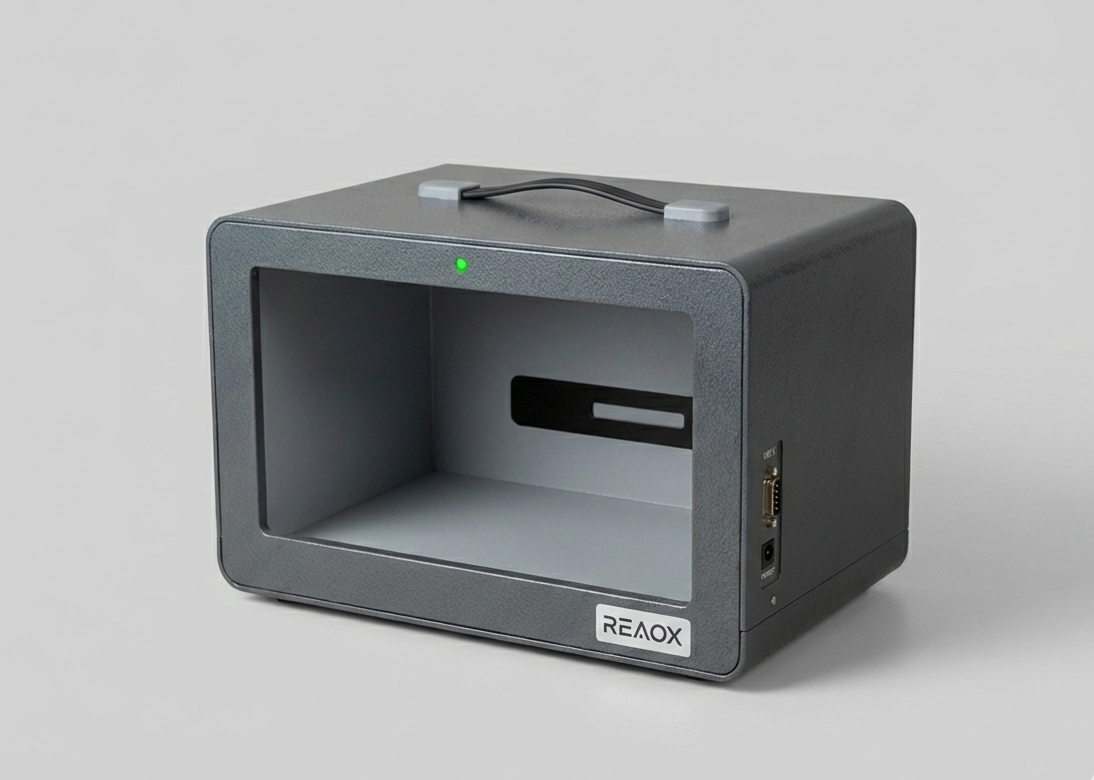

| Faraday Isolation | Shielded industrial enclosure prevents "cross-reading" of external stock, ensuring pure local inventory data. |
|---|
| Industrial Reliability | High-strength aluminum chassis designed for superior heat dissipation and 24/7 heavy-duty logistical cycles. |
|---|
RFID Core Performance
| RF Engine | ThingMagic M6e (Micro Optional) |
|---|
| Protocol Support | ISO18000-6C (EPC Global Class1 Gen2) / ISO18000-6B |
|---|
| Output Power | 5dBm ～ 31dBm (2W ～ 5.5W) Step-adjustable via API |
|---|
| Frequency Range | 840MHz - 960MHz (Global Multi-band Support) |
|---|
| Chip Compatibility | Fully supports Impinj M7/M4, Alien H3, NXP UCODE, and others |
|---|
System & Interface
| Data Connectivity | RS232 Serial Communication (Standard) |
|---|
| Instruction Set | ThingMagic Mercury API (Professional-grade Embedded Control) |
|---|
| Enclosure Material | Industrial-grade Molded Aluminum with high heat dissipation |
|---|
| Environmental | Operating Temp: -20°C to +60°C; All-weather stability |
|---|
| Software Integration | Full Windows/Java/Android SDK support for ERP & WMS integration |
|---|
Intelligence Features
| Firmware Management | Supports Online OTA Firmware Upgrades |
|---|
| Smart Filtering | Real-time tag data deduplication and noise filtering |
|---|
| Dynamic Read Modes | Automatic switching between High-Sensitivity and High-Density modes |
|---|
* Note: Optimal performance is achieved when using REAOX high-density jewelry labels. Performance may vary based on tag placement.
