Capabilities
- Desktop UHF reading format
- Useful for controlled close-range verification
- Can support tag commissioning before deployment into fixed zones
Back to RFID Tags & Devices

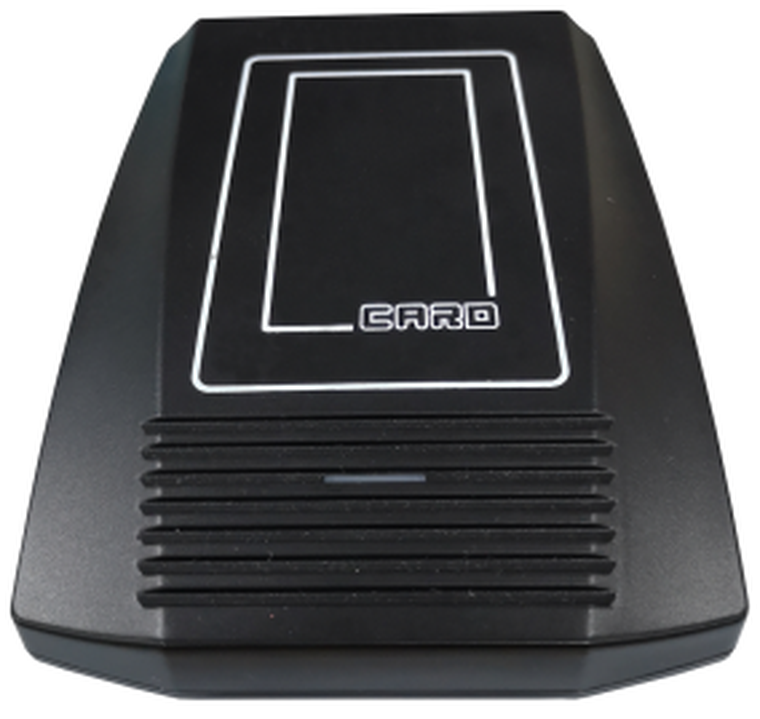

UHF Desktop Reader
RU6501
UHF Desktop Reader for Tag Issuing and Verification
A UHF desktop reader option for card issuing, tag verification, encoding workflows, and operator-side RFID checks.
Key parameters
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading / writing distance
0-60 cm
Communication interface
USB
Physical size
102 x 140 x 35.5 mm
Specification Notes
- Desktop UHF behavior can vary by tag orientation, item material, and surrounding metal.
- Confirm if the workflow needs encoding, reading, or both.
- For production use, align encoding rules with middleware, ERP, or POS data fields.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
Working frequency
840-960 MHz
Supported standards
ISO 18000-6C / EPC Gen2
Reading speed
> 400 reads per second
Reading / writing distance
0-60 cm
RF power
0-26 dBm adjustable
Working mode
Host control and active scanning
Interface, Power & Physical
Communication interface
USB
Power input
5 V
Maximum power consumption
3.5 W
Operating temperature
-20 C to 60 C
Physical size
102 x 140 x 35.5 mm
Gross weight
Approx. 300 g

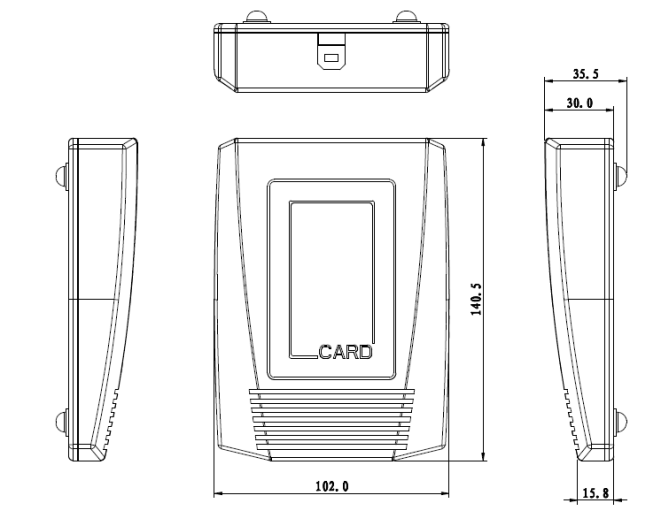

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
