Library & Public-Service Equipment

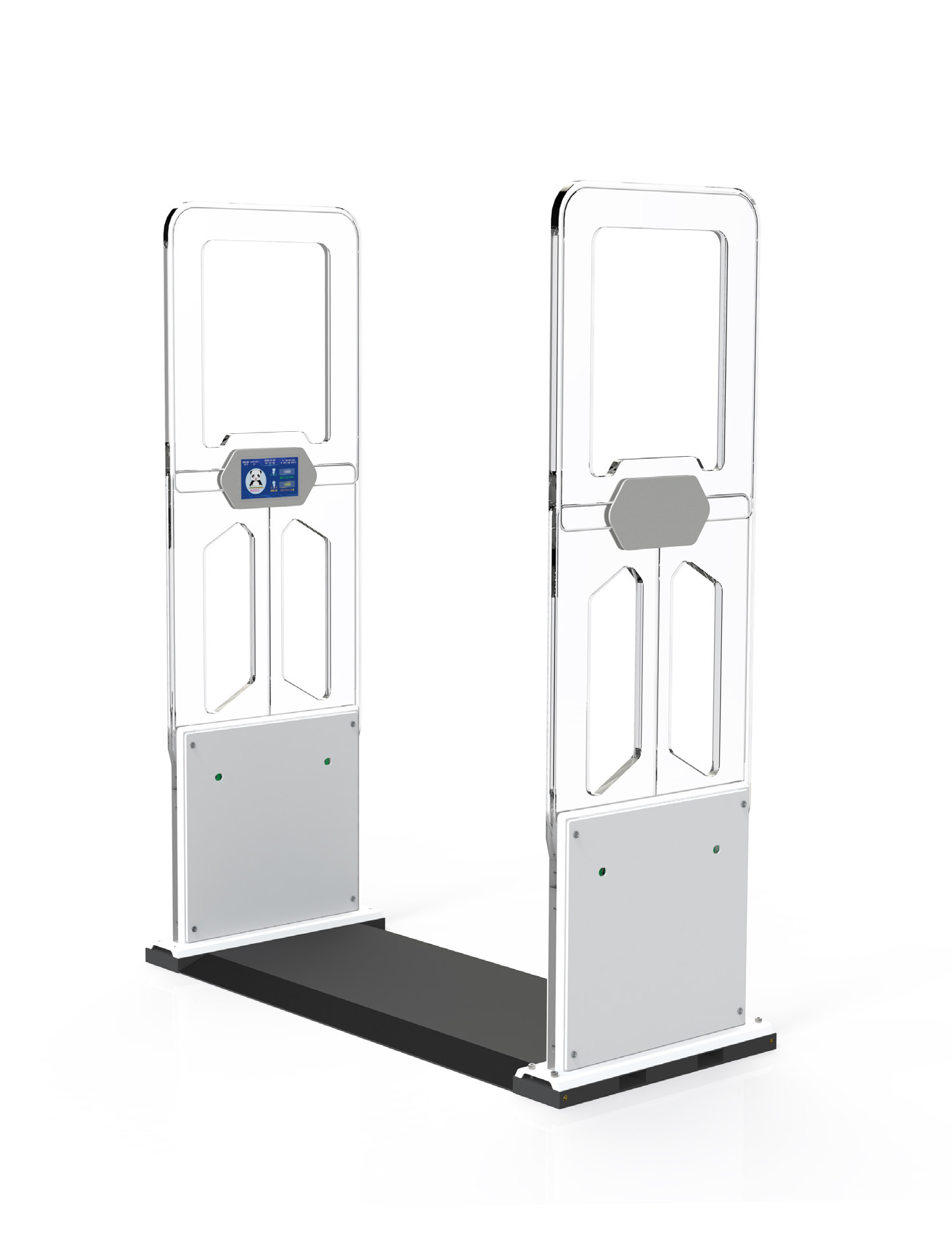

HF RFID Safety Gate for intelligent library service workflows.
Key parameters
Product model
RU6903
Product name
HF RFID Safety Gate
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
80-120 cm
RF power
1-8 W
Technical Data
Model parameters for product comparison and engineering review.
Product model
RU6903
Product name
HF RFID Safety Gate
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Channel identification width
80-120 cm
RF power
1-8 W
People counting
Supported with two infrared sensing groups
Alarm mode
AFI, EAS, DSFID, AFI+EAS, DSFID+EAS
Reading range
3D sensing
Noise detection
Supported
Relay
Integrated 8-channel relay linkage output
Tag reading speed
>= 65 tags/s
Display / indicator
7 inch HD display; dynamic UI, date, time, traffic count, custom logo, alarm information, temperature and humidity, gate quantity, alarm mode, IP address
Alarm light
Seven-color selectable light: red, orange, white, green, cyan, blue, purple
Alarm prompt
Voice or buzzer, selectable
Alarm light mode
Breathing light and alarm light
Housing material
Acrylic, sheet metal, aluminum alloy
Waterproof
Not supported
Physical size
570 x 120 x 1615 mm
Package size
650 x 180 x 1735 mm
Maximum power consumption
30 W (rated power 20 W)
Power input
AC 100-240 V, 50-60 Hz
Operating temperature
-20 C to 60 C
Storage temperature
-45 C to 85 C
Relative humidity
5%-80%
Color
White + transparent
Safety gate base
90 cm or 120 cm optional
Communication interface
Ethernet
Gross weight
Approx. 29.9 kg per panel
Net weight
Approx. 20.9 kg per panel

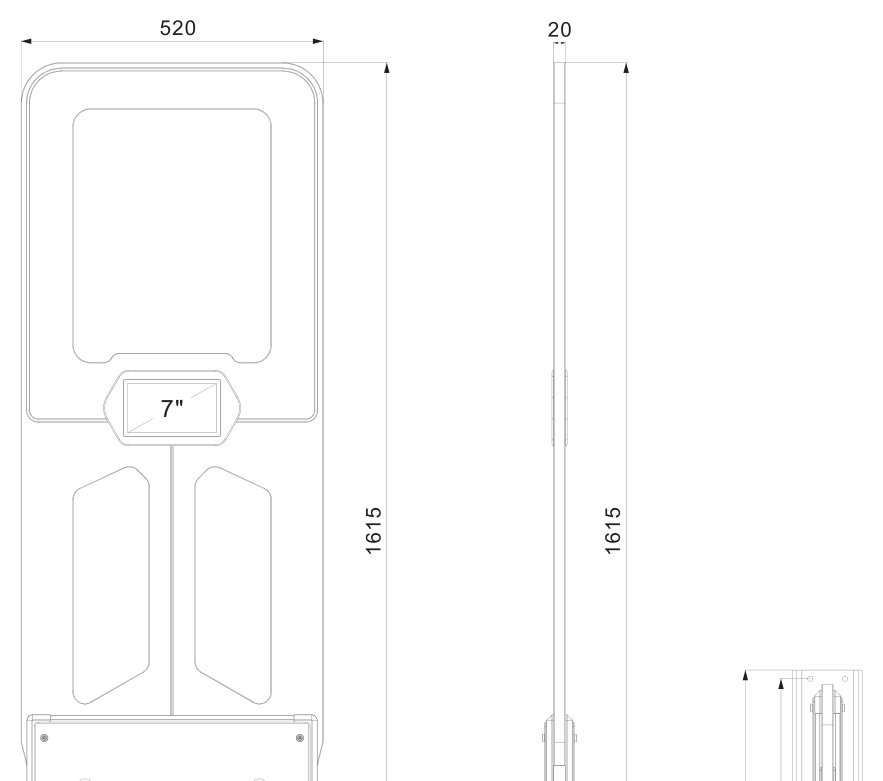

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
