Dining & Food-Safety Device

RCY1007

Smart Weighing All-in-One (ARM)

Precise self-service weighing with tray recognition, nutrition data, and quiet account settlement.

Key parameters

Product model

RCY1007

Product name

Smart Weighing All-in-One

Tray recognition

Barcode / QR code

Software

Embedded application software

Recognition time

<= 1 s

MCU

ARM

RCY1007

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & Display

Product model

RCY1007

Product name

Smart Weighing All-in-One

Tray recognition

Barcode / QR code

Software

Embedded application software

Recognition time

<= 1 s

MCU

ARM

Function keys

Touch keys

Screen size

7 inch

Screen resolution

800 x 480

Material

Aluminum alloy, titanium alloy, tempered glass, acrylic

Splash / saliva shield

Standard

Screen functions

Custom logo, dish name, unit price, nutrition, user name, amount, balance

Interface, Power & Environment

Communication interface

RS232

Cascade interface

2 ports

SDK

C / C++ / C# / Java

LED light

Built in

Power input

12 V DC, 3 A

Alarm light

Seven-color alarm in shield; optional upright alarm

Operating temperature

-20 C to 60 C

Storage temperature

-40 C to 85 C

Relative humidity

10%-95% RH, non-condensing

Sensor grade

>= 3C

Maximum capacity

50 kg

Cascaded scale support

Supported

RFID tray option

Optional RFID smart tray

Sound-light alarm

Supported; optional voice / buzzer

Power configuration

One adapter per 5 devices

Product size

558 x 437 x 806.5 mm

Gross weight

15 kg

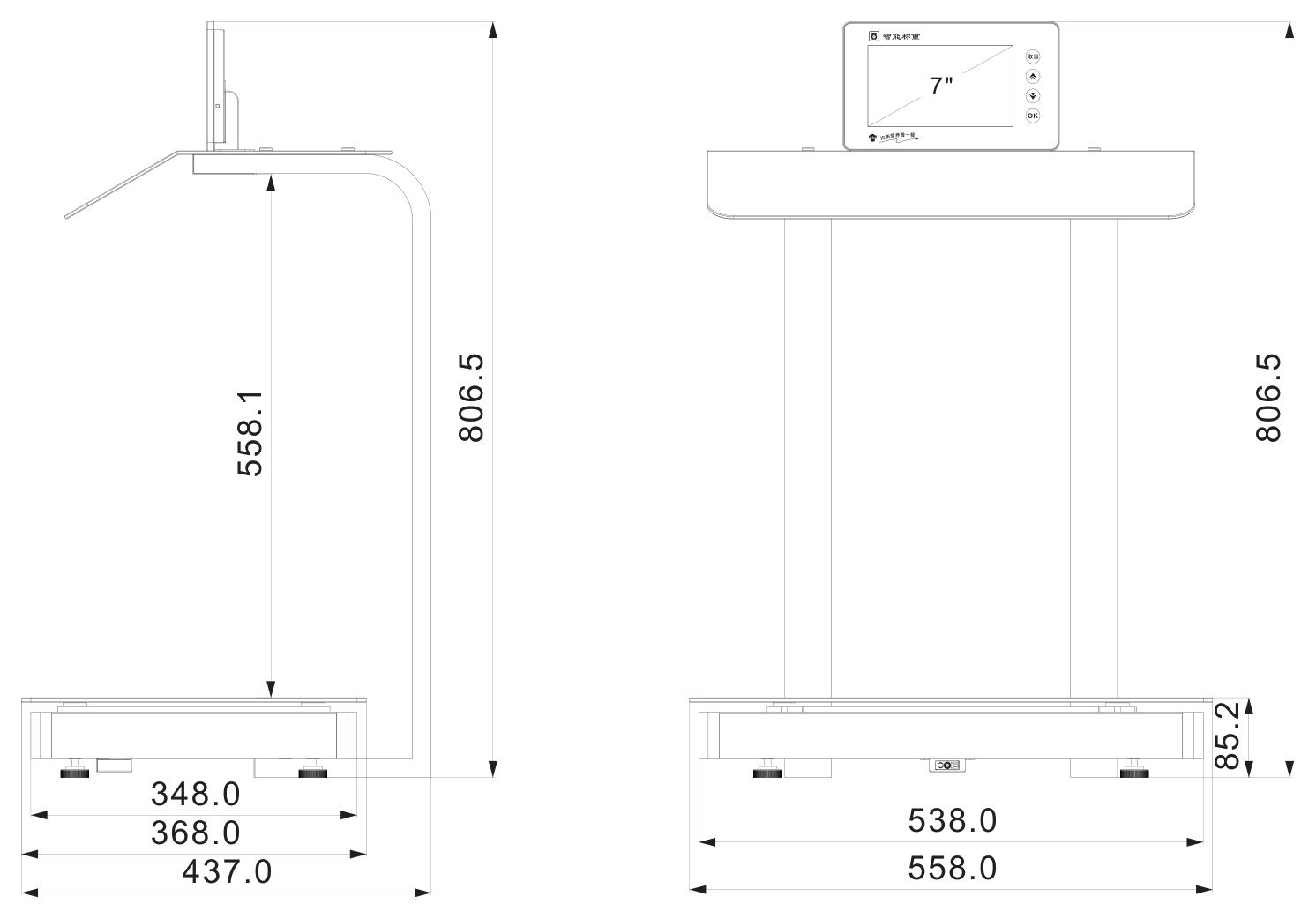

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RCY1007 mechanical dimensions
