Dining & Food-Safety Device

RCY2030

Smart Weighing Cash Register

A weighing cash register for smart canteens with face, card, scan, RFID, and receipt workflows.

Key parameters

Product model

RCY2030

Product name

Smart Weighing Cash Register

Product size

520 x 368 x 650 mm

Operating system

Android / Windows

Screen size

21.5 inch

Screen resolution

1920 x 1080

RCY2030

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & Display

Product model

RCY2030

Product name

Smart Weighing Cash Register

Product size

520 x 368 x 650 mm

Operating system

Android / Windows

Screen size

21.5 inch

Screen resolution

1920 x 1080

Touch

10-point touch

Screen rotation

Up / down 70 degrees

Material

Aluminum alloy, titanium alloy, tempered glass, acrylic

Printer

Serial RS232 / TTL or USB; 58 mm thermal paper

Scanner

Barcode / QR code

Card reader

13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, RS232, 5 V DC

RFID option

Optional built-in RFID antenna

System, Interface & Environment

CPU

RK3562 quad-core 64-bit 2.0 GHz / Intel i5 4th generation

Memory / storage

2 GB + 32 GB / 8 GB + 128 GB

Camera

Monocular camera, D90 degrees, USB power

Scheduled power on/off

Supported

SDK

C / C++ / C# / Java

Power input

12 V DC, 5 A

Communication interface

RS232

Network

Ethernet, WiFi

External interfaces

USB x2

Sensor grade

>= 3C

Maximum capacity

50 kg

Operating temperature

-20 C to 60 C

Storage temperature

-40 C to 85 C

Relative humidity

10%-95% RH, non-condensing

Gross weight

-

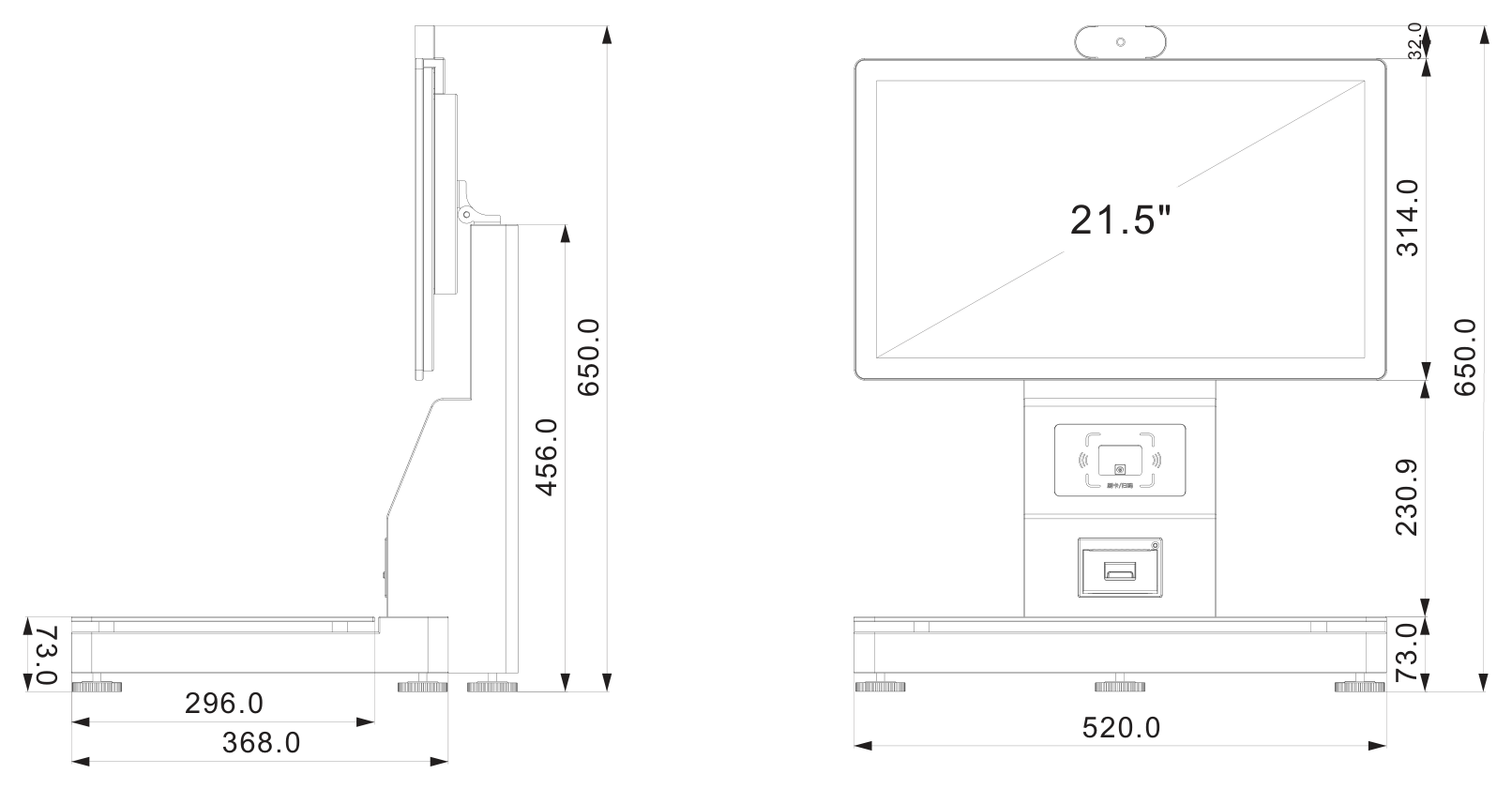

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RCY2030 mechanical dimensions
