Dining & Food-Safety Device

RCY3402

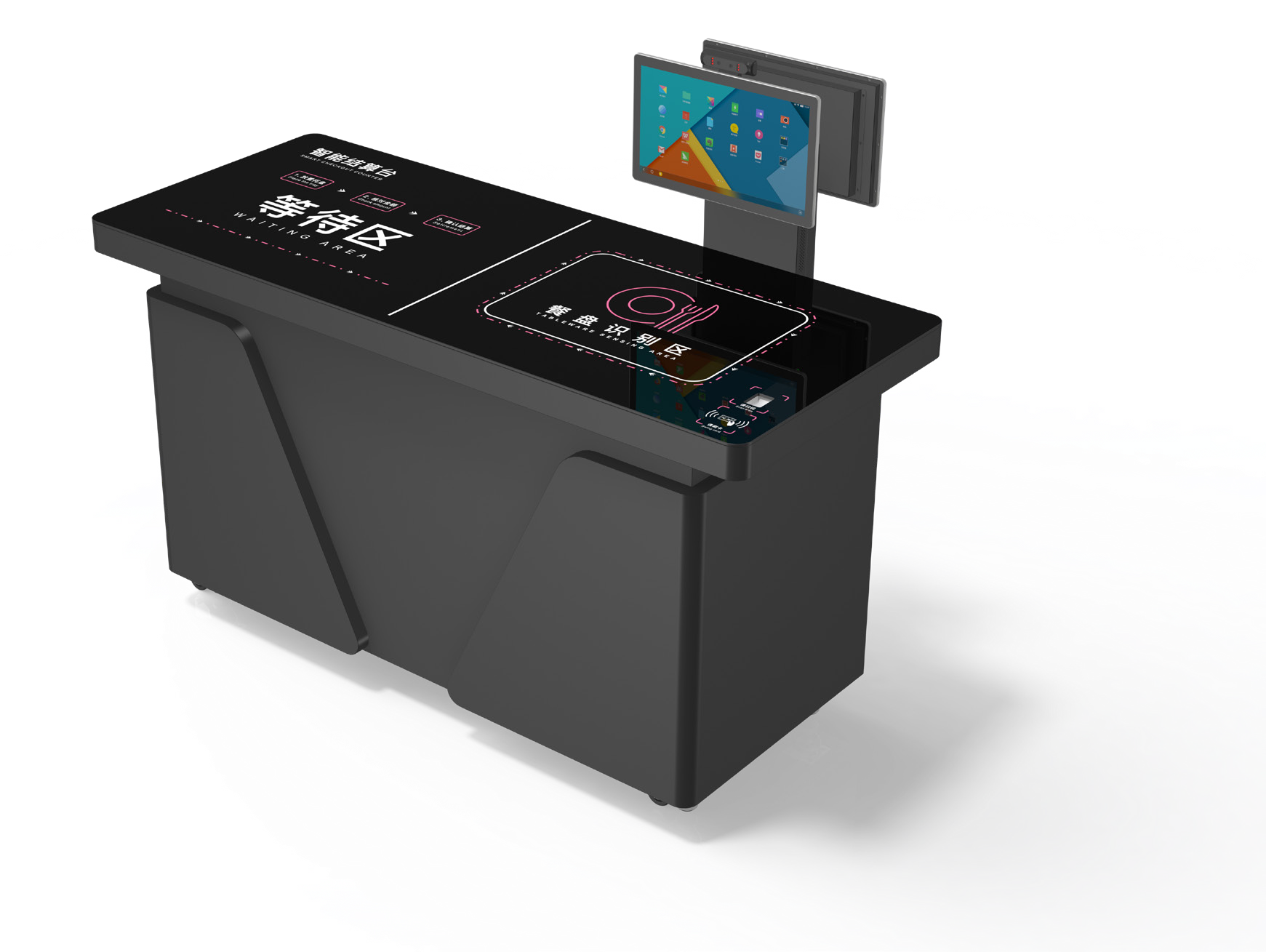

RFID Smart Checkout Counter

A queue-ready RFID smart checkout counter with selectable left or right entry direction.

Key parameters

Product model

RCY3402

Product name

RFID Smart Checkout Counter

RFID recognition

Fast tableware recognition

Product size

1468 x 715.8 x 1200 mm

Package size

1556 x 688 x 971 mm

Recognition time

<= 0.5 s

RCY3402

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & Display

Product model

RCY3402

Product name

RFID Smart Checkout Counter

RFID recognition

Fast tableware recognition

Product size

1468 x 715.8 x 1200 mm

Package size

1556 x 688 x 971 mm

Recognition time

<= 0.5 s

Operating system

Windows / Android

Screen size

15.6 inch

Screen quantity

Dual screen

Resolution

1920 x 1080

CPU

Intel i5 4th generation / RK3568 quad-core 64-bit 2.0 GHz

Memory / storage

8 GB + 128 GB / 2 GB + 16 GB

RFID, Payment & Environment

RFID antenna

Coupled dual antenna, anti-metal design

Sensing area

>= 480 x 360 mm

Reading distance

>= 35 cm with white card

Entry direction

Optional left entry or right entry

Reader protocol

ISO15693 and ISO18000-3

Reading speed

Up to 65 tags per second

Network

Ethernet, WiFi

External interfaces

USB x2

Scanner

High-speed 1D / 2D barcode scanning

Power input

220 V, 60 Hz

Gross weight

76 kg

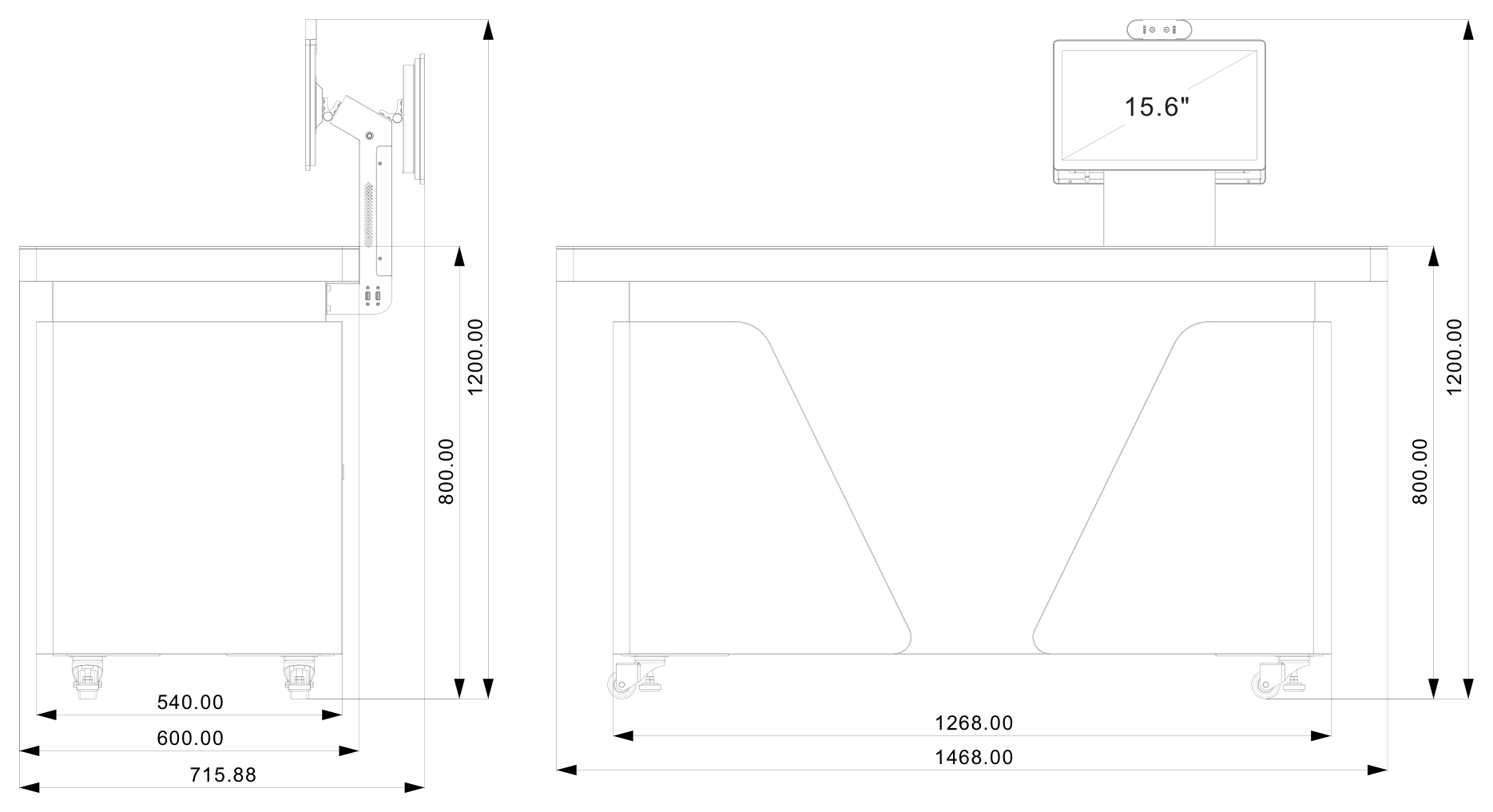

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RCY3402 mechanical dimensions
