RJHS1010

Product model

RJHS1010

Product name

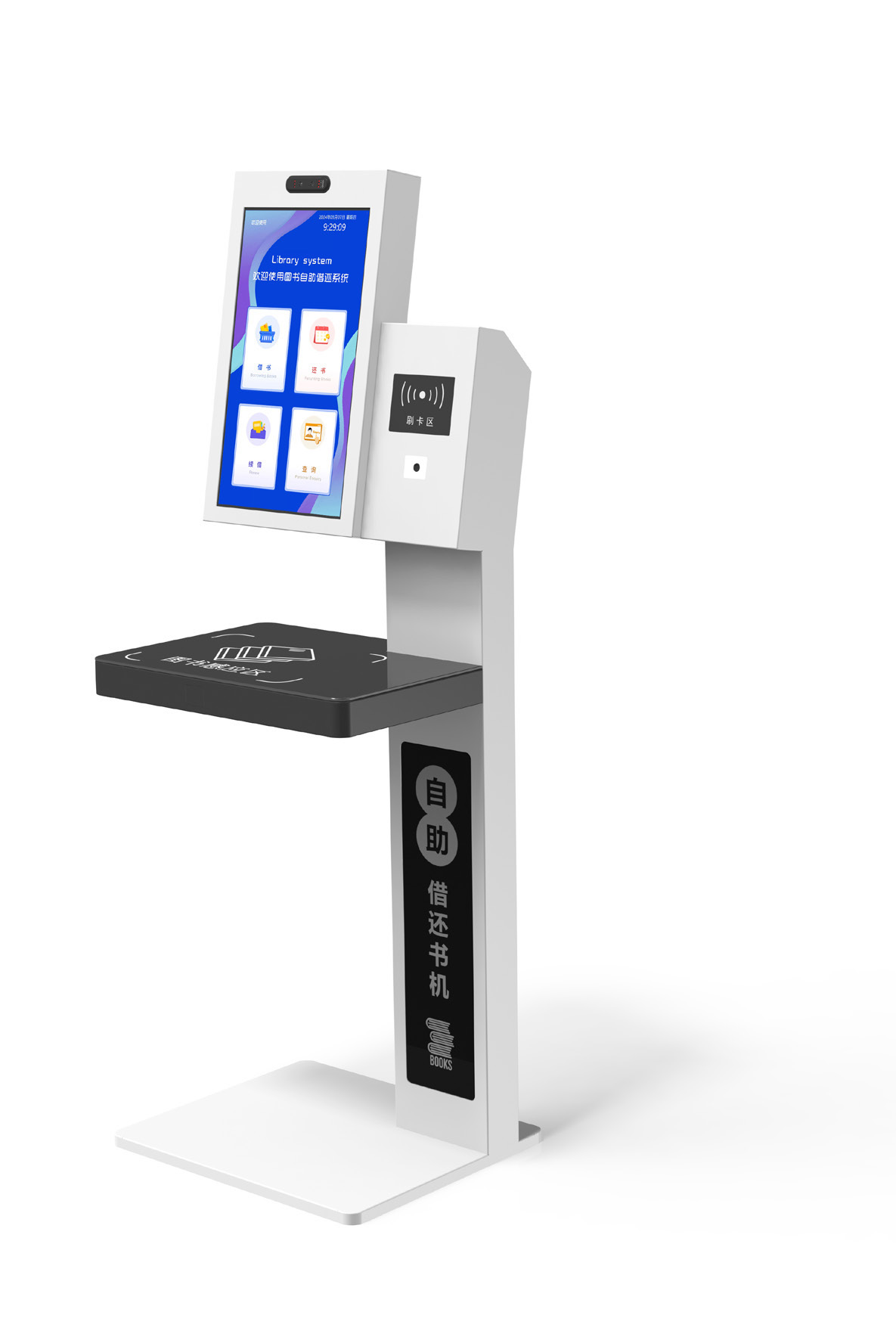

Self-Service Loan and Return Machine

Working frequency

13.56 MHz, 840-960 MHz

Supported standards

ISO 15693, ISO 18000-6C

Book identification

Multiple books, stack height <= 250 mm, >= 10 books

Loan / return methods

Face recognition, IC card, ID card, WeChat QR code

Energy-saving technology

Radar sensing

Applicable items

Picture books, books, magazines, newspapers, archives, assets

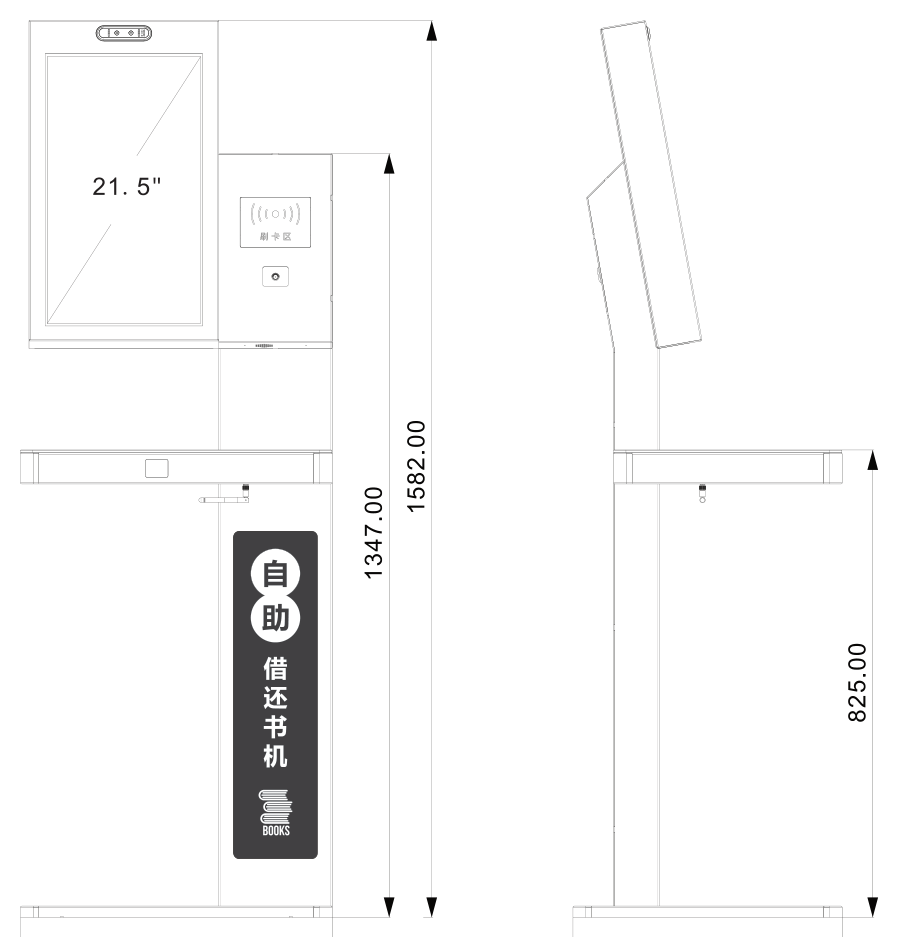

Physical size

550 x 475 x 1550 mm (L x W x H)

Package size

675 x 610 x 1720 mm

Display

21.5 inch vertical touchscreen

Display resolution

1080 x 1920 @ 60 Hz (HDMI, up to 4K @ 60 Hz)

Touch type

10-point capacitive touchscreen

Material structure

>= 2.0 mm sheet metal, tempered glass

Gross weight

Approx. 61 kg

Read / write function

Supports multi-tag identification and fast anti-collision processing

HF reader

13.56 MHz; ISO15693 and ISO18000-3; 1.5 W output; >= 50 tags/s; Multiple books, stack height <= 250 mm, >= 10 books; USB / RS232; 12 V DC; 3.5 W max.

UHF reader

840-960 MHz; ISO 18000-6C; 0-33 dBm adjustable; > 400 reads/s; multiple-book identification

Reader-card module

13.56 MHz; ISO15693 and ISO14443A; approx. 0-15 cm; USB; 5 V DC

ID-card reader

2nd / 3rd generation ID card and TYPE-A/B IC card reading; approx. 0-3 cm; USB / TTL; 5 V DC

Barcode / QR scanner

5 V USB; ARM32-bit processor; >= 4 MIL / 0.1 mm @ PCS90%; roll 0-360 degrees, pitch +/-65 degrees

Network

Ethernet, WiFi

System options

Windows or Android platform options, configurable by project

Power input

220 V 60 Hz
