RTS2021

Product model

RTS2021

Product name

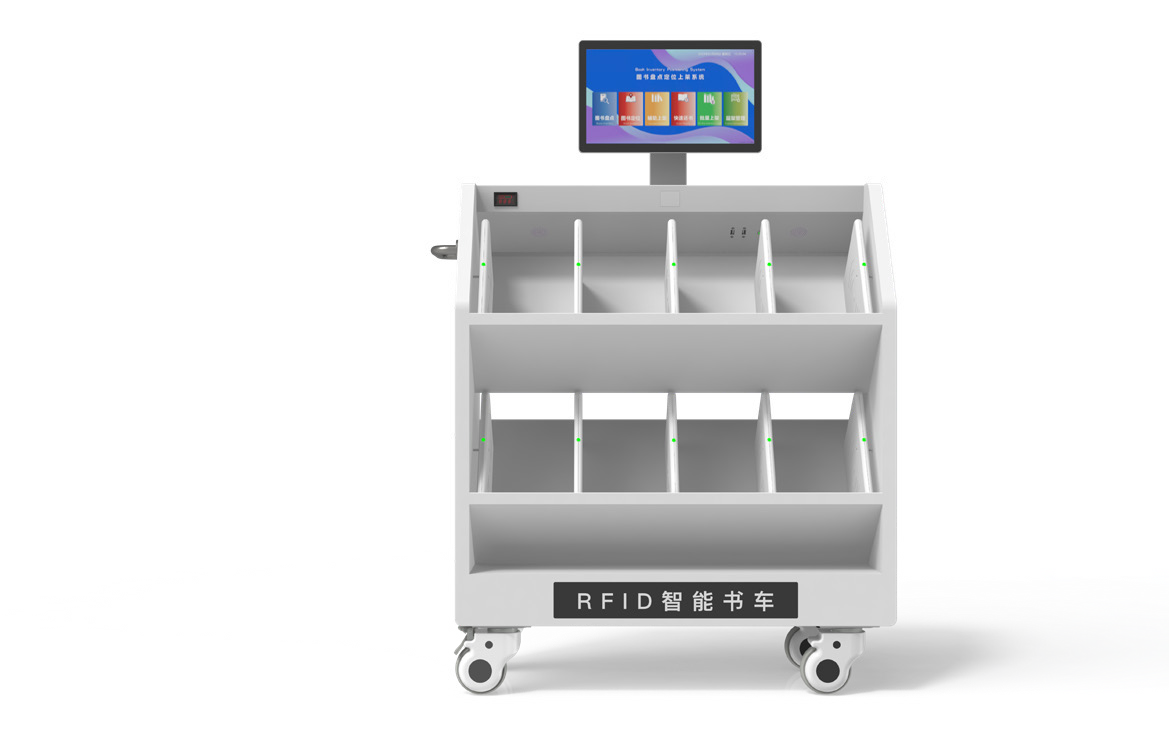

Smart Book Return Cart

Working frequency

13.56 MHz

Supported standards

ISO 15693

Book identification

Multiple books

Loan / return methods

Face recognition, IC card, ID card, WeChat QR code

Return mode

Login-free fast return

Shelf layers

2 layers

Screen size

10.1 inch or 15.6 inch

Battery capacity

12 V 60 Ah with battery-level display

External USB

2

Book capacity

Approx. 100 books

Energy-saving technology

Radar sensing, sensing distance up to 10 m

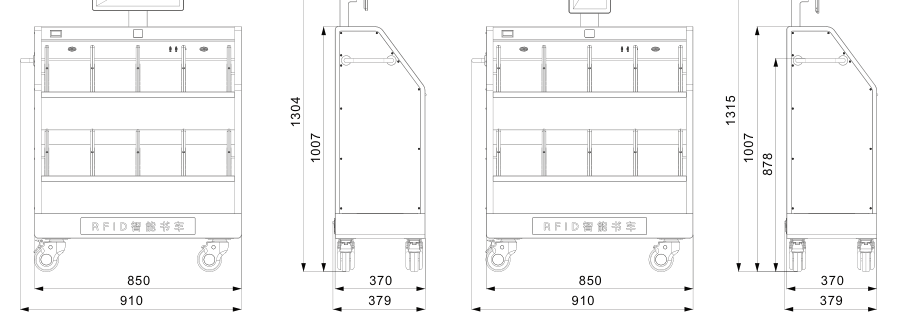

Physical size

910 x 379 x 1304 mm (L x W x H)

Package size

1036 x 486 x 1502 mm

Read / write function

Supports multi-tag identification and fast anti-collision processing

Display

10.1 inch (1280 x 800 px) or 15.6 inch (1080 x 1920 px)

Screen rotation

Left / right 180 degrees, up / down 100 degrees

Touch type

10-point capacitive touchscreen

Material structure

>= 1.0 mm sheet metal, acrylic

High-power HF reader

13.56 MHz; ISO15693 and ISO18000-3; 1-8 W adjustable; up to 65 tags/s; RS232 / RS485 / Ethernet; 12 V DC, <= 1.5 A

Reader-card module

13.56 MHz; ISO15693 and ISO14443A; approx. 0-15 cm; USB; 5 V DC

Network

Ethernet, WiFi

Battery runtime

7-12 hours

Gross weight

Approx. 80 kg
