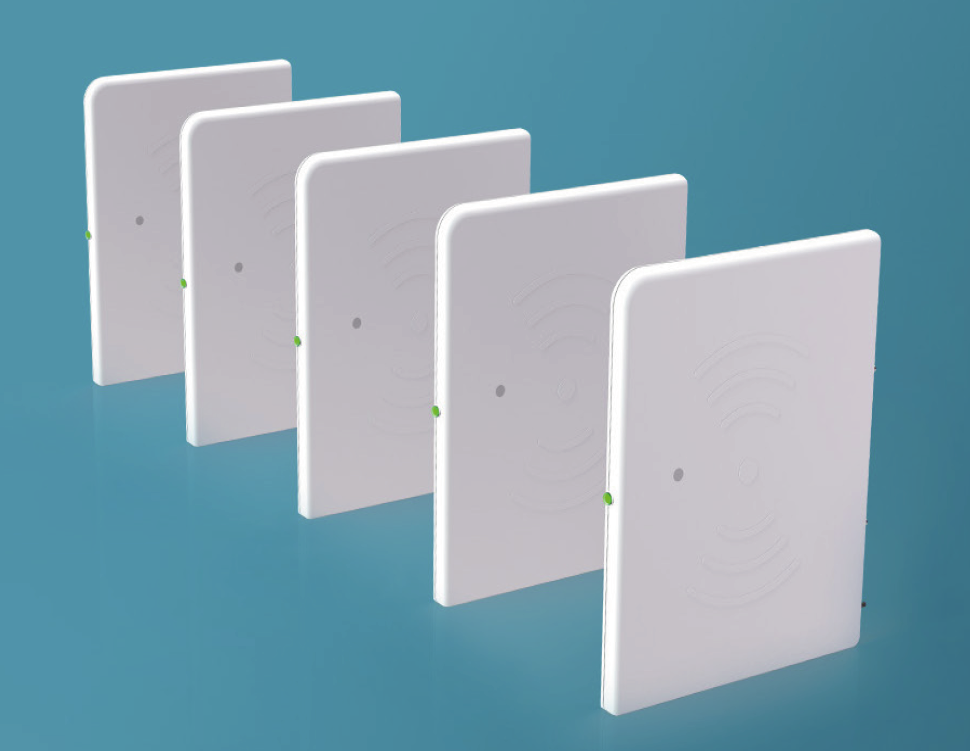

RFID Antenna
RTX1002
Structured Reading-Zone Antenna for Shelves and Equipment
A representative antenna asset for shelf, cabinet, plate, and structured reading-zone designs where field shape matters as much as reader power.
Key parameters
Working frequency
13.56 MHz
Standard support
ISO 15693
Connectors
MCX interface
Dimensions
210 x 16 x 255 mm
Specification Notes
- Antenna selection is tested against item material, tag orientation, and shelf geometry.
- Shielding and neighboring read zones can strongly affect final performance.
- Reader power alone cannot solve a poorly shaped read zone; antenna layout is a core design decision.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Interface
Working frequency
13.56 MHz
Standard support
ISO 15693
RF power support
4 W or below
Connectors
MCX interface
Communication
TCP/IP
Tag requirements
Overlap area <= 50% for optimal performance
Physical & Application
Dimensions
210 x 16 x 255 mm
Material
Premium ABS engineering plastic
Metal support
Yes
Applications
Smart libraries, chemical cabinets, retail shelves, canteens

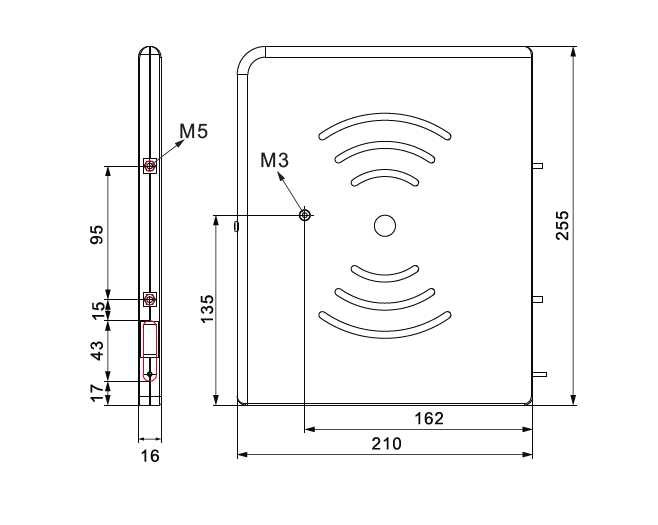

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
