Capabilities
- Compact module format for device integration
- Suitable for embedded reader-writer designs
- Can be matched with custom antennas, shielding, and host software
Back to RFID Tags & Devices

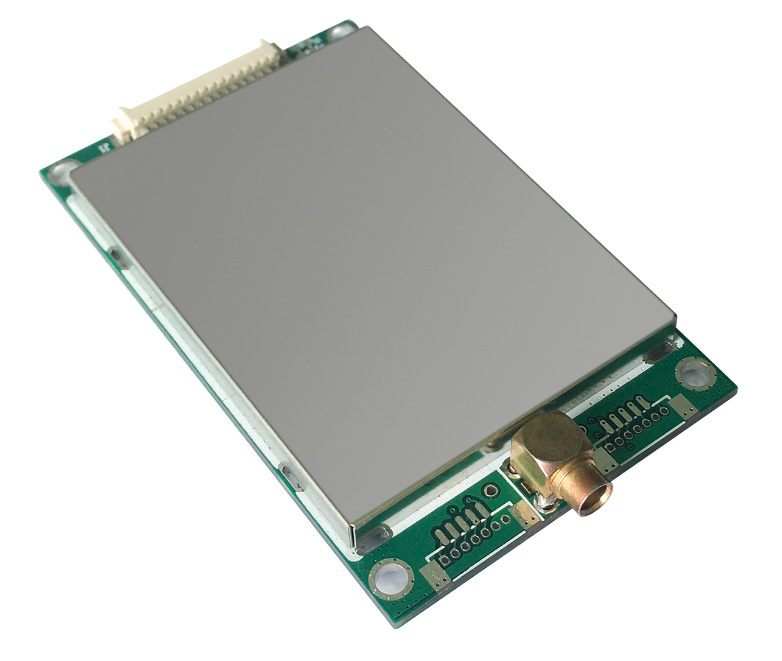

Reader Writer Module
RU6722
Embedded RFID Reader-Writer Module for Custom Equipment
A medium-power embedded reader-writer module for equipment builders, custom cabinets, kiosks, workflow devices, and integrated RFID hardware.
Key parameters
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading distance
Up to 65 cm
Communication interface
RS232
Physical size
73 x 45 x 8.5 mm
Specification Notes
- Confirm host interface, power budget, enclosure space, and heat behavior early.
- Antenna and module are validated together in the final device structure.
- For production devices, plan firmware, API, and serviceability requirements before enclosure tooling.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 65 cm
Antenna connector
MCX
RF power
0.25-1.5 W configurable
Interface, Power & Physical
Communication interface
RS232
Power input
12 V DC, <= 400 mA
Maximum power consumption
3.5 W
Operating temperature
-20 C to 60 C
Physical size
73 x 45 x 8.5 mm
Gross weight
Approx. 31 g

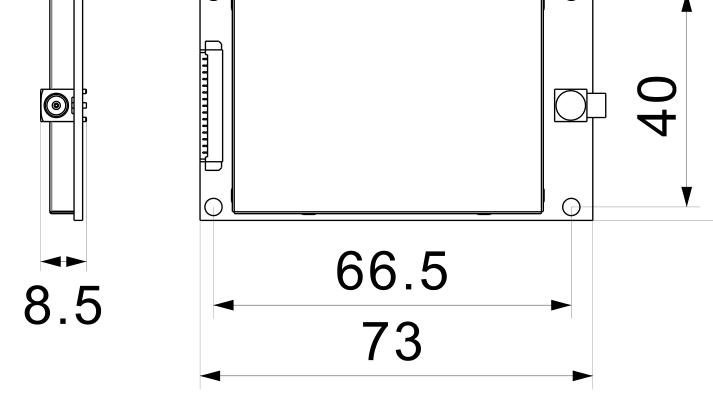

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
