Reader Module
A micro-power embedded HF reader-writer module for larger-format RFID integration.
Key parameters
Product model
RU6205
Product name
HF Micro-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading speed
<= 50 tags per second
Reading distance
10 cm (ISO15693); 5 cm (ISO14443A)
Technical Data
Model parameters for product comparison and engineering review.
Product model
RU6205
Product name
HF Micro-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading speed
<= 50 tags per second
Reading distance
10 cm (ISO15693); 5 cm (ISO14443A)
Anti-collision processing
Supported
Multi-card reading
Supported
Supported cards
I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70
Prompt sound
Buzzer, when enabled
Communication interface
RS232
Waterproof
Not supported
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Maximum power consumption
1.6 W
Power input
12 V DC
Relative humidity
10%-95% RH, non-condensing
Physical size
160 x 90 x 22 mm
Package size
425 x 303 x 60 mm
Gross weight
Approx. 200 g

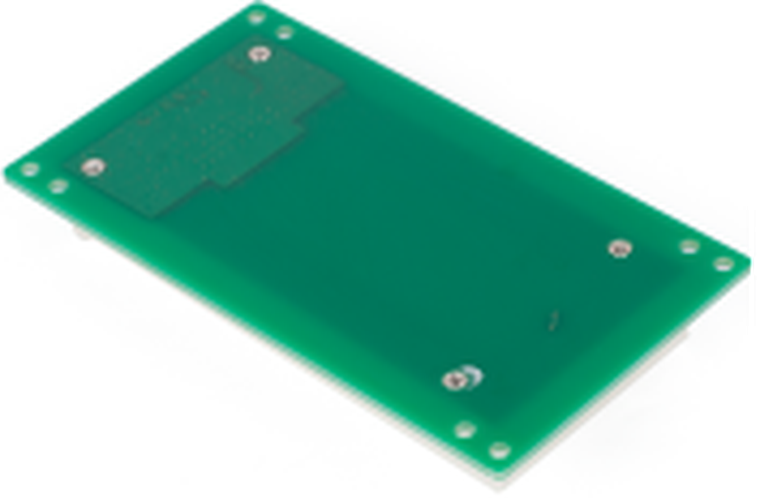

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
