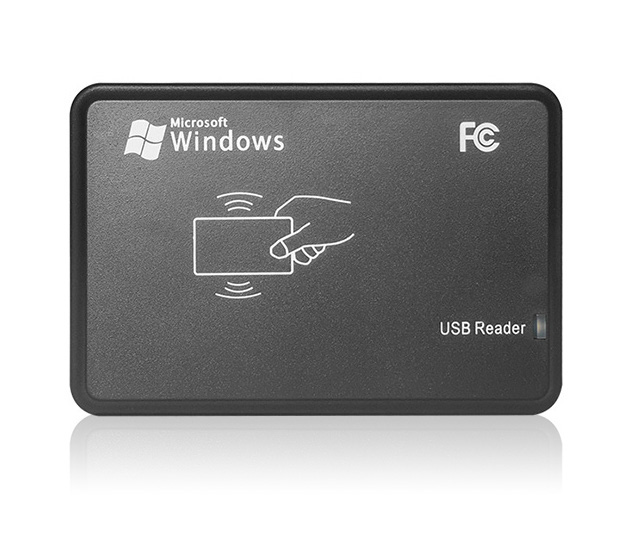

Reader Module
A compact USB-powered HF desktop reader-writer for lightweight RFID card and tag workflows.
Key parameters
Product model
RU6201
Product name
HF Micro-Power Desktop Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO14443A
Reading speed
<= 50 tags per second
Reading distance
16 cm (ISO15693); 10 cm (ISO14443A)
Technical Data
Model parameters for product comparison and engineering review.
Product model
RU6201
Product name
HF Micro-Power Desktop Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO14443A
Reading speed
<= 50 tags per second
Reading distance
16 cm (ISO15693); 10 cm (ISO14443A)
Anti-collision processing
Supported
Multi-card reading
Supported
Supported cards
I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70
Prompt sound
Buzzer, when enabled
Communication interface
USB
Housing material
ABS plastic
Waterproof
Not supported
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Maximum power consumption
0.6 W
Power input
5 V, USB powered
Relative humidity
10%-95% RH, non-condensing
Physical size
105 x 70 x 13.5 mm
Package size
425 x 303 x 60 mm
Gross weight
Approx. 50 g

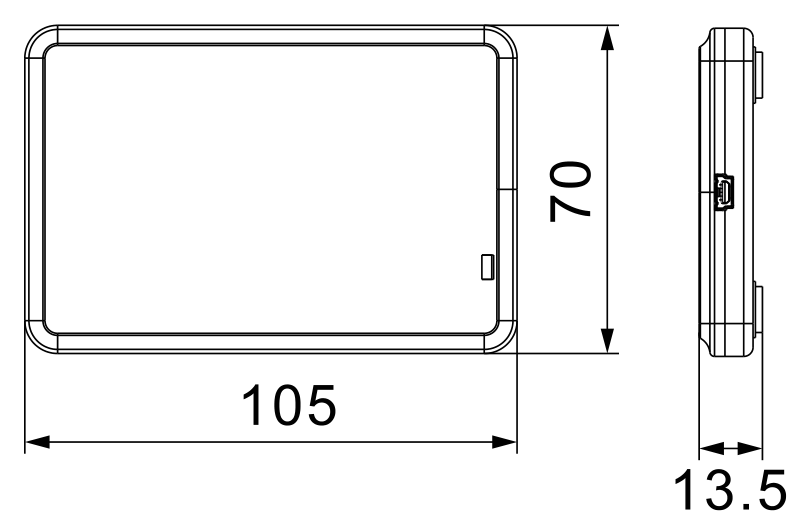

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
