HF Embedded Reader
RU6203
Embedded HF Reader for Custom Equipment Integration
An embedded HF reader option for equipment builders and custom RFID devices where the reader is integrated inside a cabinet, kiosk, or terminal.
Key parameters
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading distance
8 cm (ISO15693); 5 cm (ISO14443A)
Communication interface
USB
Physical size
49 x 46.1 x 10.5 mm
Specification Notes
- Confirm host interface, power, heat, mounting, and antenna layout before enclosure design is finalized.
- Embedded readers are tested inside the final mechanical structure.
- Serviceability matters: plan how technicians will access and replace the module if needed.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
Working frequency
13.56 MHz
Supported standards
ISO15693, ISO18000-3M3, ISO14443A
Reading speed
<= 50 tags per second
Reading distance
8 cm (ISO15693); 5 cm (ISO14443A)
Supported cards
I Code ILT, I Code SLI, I Code SLIX, I Code SLIX2, Mifare S50/70
Anti-collision processing
Supported
Interface, Power & Physical
Communication interface
USB
Power input
5 V, USB powered
Maximum power consumption
0.48 W
Operating temperature
-20 C to 60 C
Physical size
49 x 46.1 x 10.5 mm
Gross weight
Approx. 50 g

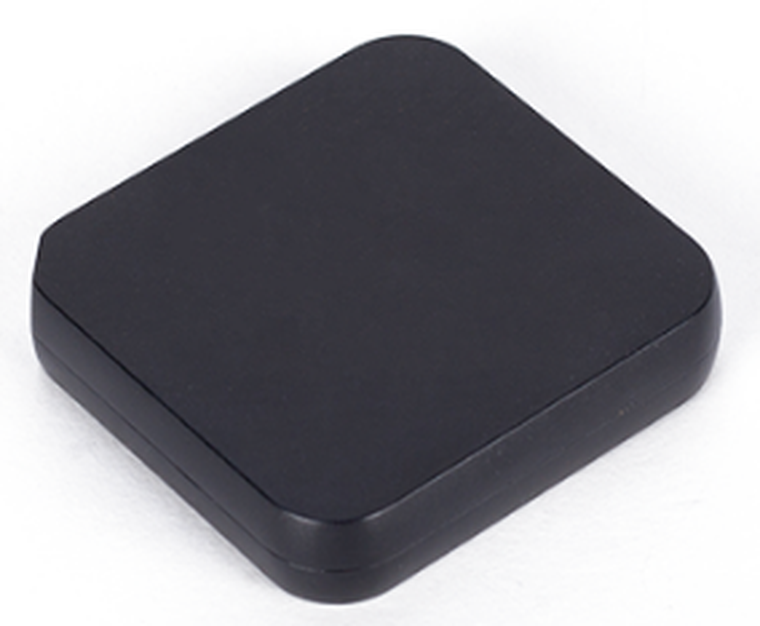

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
