Reader Module
A compact embedded HF reader-writer for medium-power RFID equipment integration.
Key parameters
Product model
RU6403
Product name
HF Medium-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 16 cm
Technical Data
Model parameters for product comparison and engineering review.
Product model
RU6403
Product name
HF Medium-Power Embedded Reader-Writer
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 16 cm
Working mode
Host control and scanning, configurable by software
Energy saving
Automatic RF shutdown while idle
Anti-metal design
Yes
Prompt sound
Buzzer, when enabled
RF power
0.25-1.5 W configurable
Housing material
PCB and titanium alloy
Noise detection
Supported
Waterproof
Not supported
Communication interface
RS232, USB
Operating temperature
-20 C to 60 C
Storage temperature
-40 C to 85 C
Maximum power consumption
3.5 W
Power input
12 V DC
Relative humidity
10%-95% RH, non-condensing
Anti-collision processing
Supported
Physical size
160 x 89 x 20.6 mm
Gross weight
Approx. 800 g

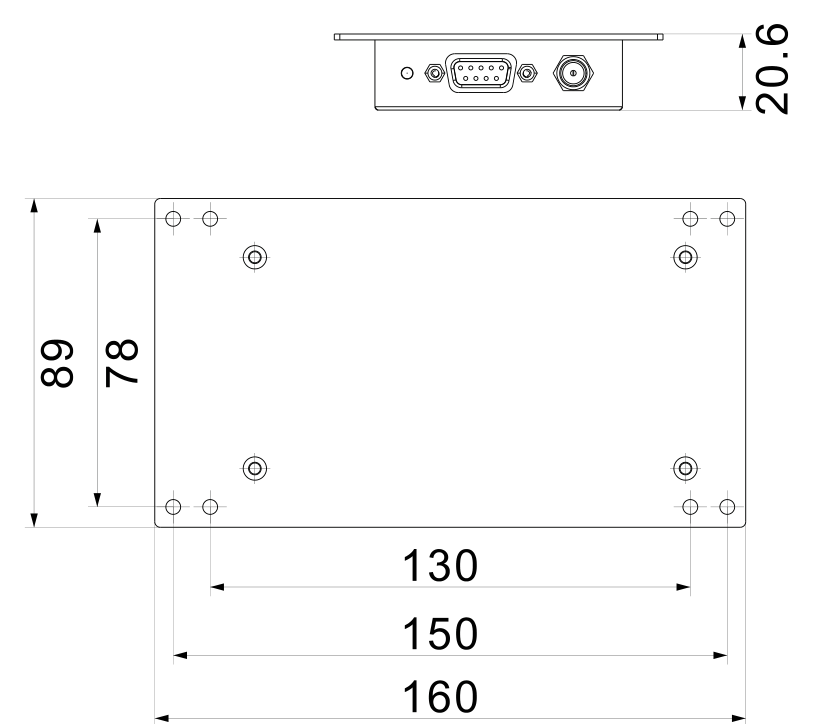

Mechanical Dimensions
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
