Capabilities
- Desktop reader-writer format
- Suitable for controlled close-range HF operations
- Useful for system operators, librarians, store teams, and integration testing
Back to RFID Tags & Devices
HF Desktop Reader
RU6104
Desktop HF Reader-Writer for Counter and Workstation Use
A desktop HF reader-writer for workstation operations such as card issuance, tag verification, encoding, and small-batch RFID handling.
Key parameters
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading distance
Up to 42 cm
Communication interface
RS232, USB
Physical size
476 x 311.5 x 29 mm
Specification Notes
- Confirm whether the workflow needs read-only verification or write/encoding capability.
- Desktop placement matches operator movement and item handling speed.
- If the device is part of a larger system, confirm software connection and data format early.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 42 cm
RF power
0.25-1.5 W configurable
Working mode
Host control and scanning, configurable by software
Interface, Power & Physical
Communication interface
RS232, USB
Power input
12 V DC
Maximum power consumption
3.5 W
Operating temperature
-20 C to 60 C
Physical size
476 x 311.5 x 29 mm
Gross weight
Approx. 3500 g

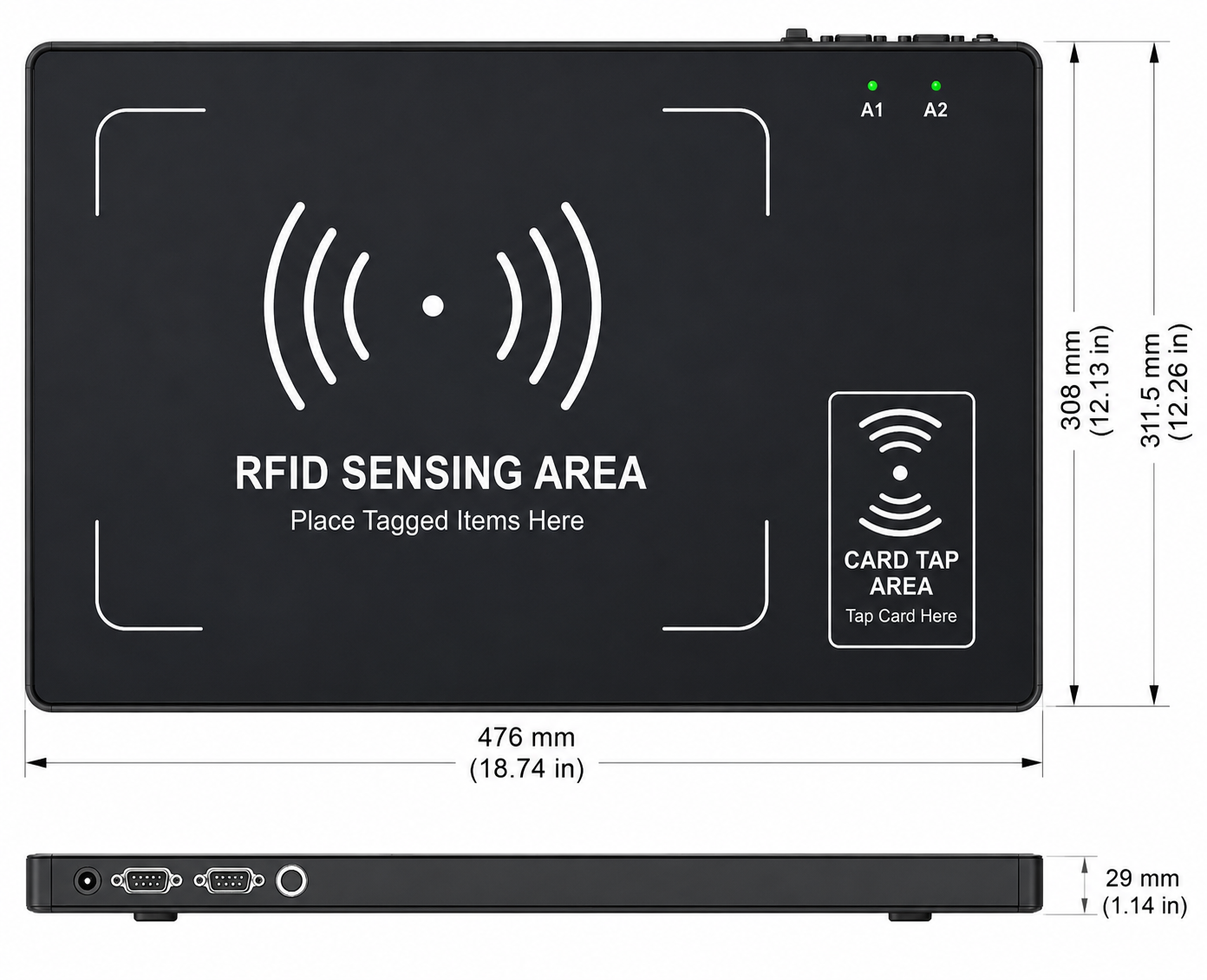

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
