Capabilities
- Desktop form factor for repeatable reads
- Designed for close-range controlled operation
- Can support front-desk or back-office RFID processes
Back to RFID Tags & Devices

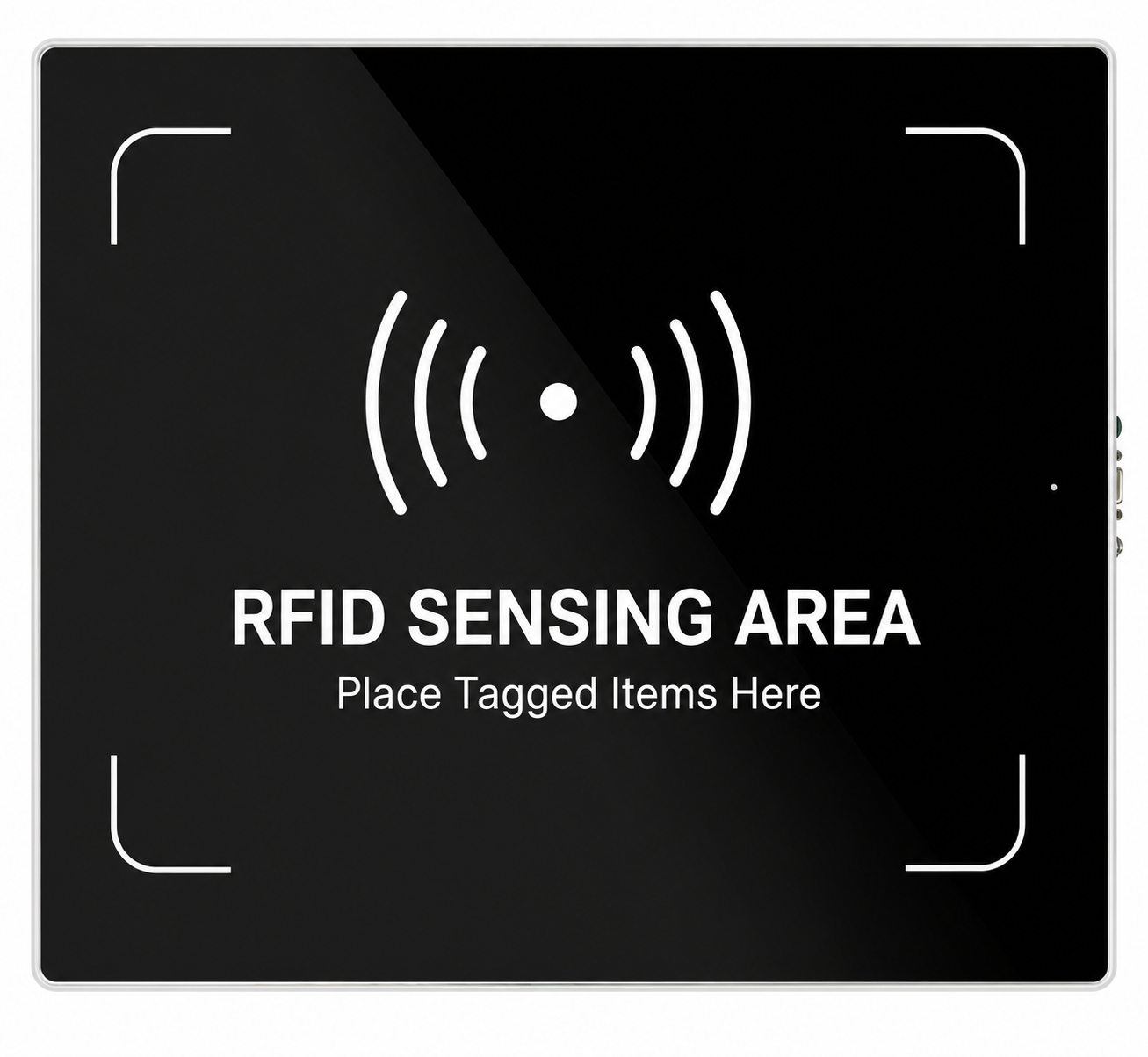

HF Desktop Reader
RU6105
Desktop RFID Reader-Writer for Operational Workstations
A desktop RFID reader-writer option for stable workstation deployment, operator-driven verification, and close-range HF workflows.
Key parameters
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading distance
Up to 48 cm
Communication interface
RS232, USB
Physical size
468.5 x 365 x 25 mm
Specification Notes
- Select the reader together with the target tag/card standard.
- Plan the workstation layout so item placement is consistent.
- Confirm whether the deployment needs standalone software or integration into an existing system.
Technical Data
Technical specifications
Model parameters for product comparison and engineering review.
RFID & Reading
Working frequency
13.56 MHz
Supported standards
ISO15693 and ISO18000-3
Reading speed
<= 50 tags per second
Reading distance
Up to 48 cm
RF power
0.25-1.5 W configurable
Adjacent read range
<= 6 cm
Interface, Power & Physical
Communication interface
RS232, USB
Power input
12 V DC
Maximum power consumption
3.5 W
Operating temperature
-20 C to 60 C
Physical size
468.5 x 365 x 25 mm
Gross weight
Approx. 3950 g

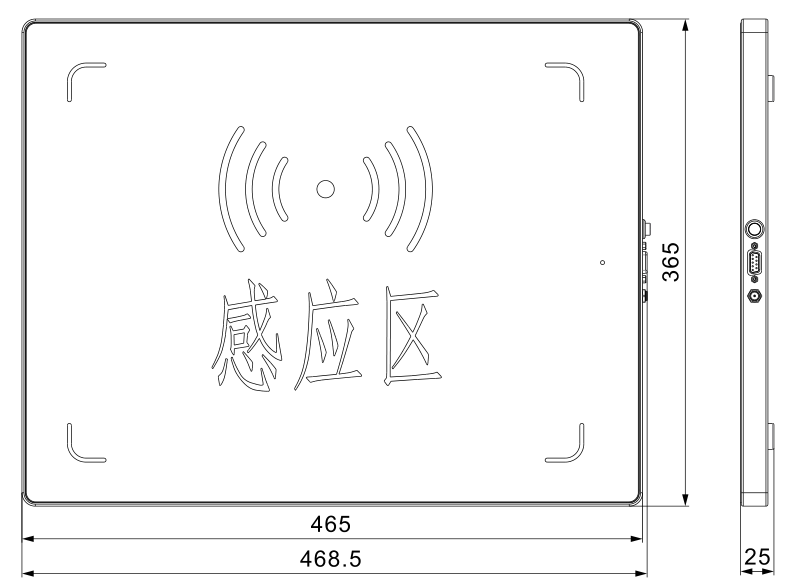

Mechanical Dimensions
Physical size and structure drawing
Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
Reference material: Product manual available for review.
