RU6820 / RU6830

Product model

RU6820 / RU6830

Product name

HF High-Power Multi-Channel Reader-Writer Series

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Reading speed

<= 65 tags per second

Card reading quantity

<= 300 tags per cycle

Reading distance

Up to 90 cm, depending on tag, antenna size, and environment

Antenna interface

RU6820: SMA x20; RU6830: SMA x30

RF power

1-8 W configurable

Noise detection

Supported

Communication interface

RS232, RS485, Ethernet

Working mode

Host control and scanning, configurable by software

Anti-collision processing

Supported

Energy saving

Automatic RF shutdown while idle

Prompt sound

Buzzer, when enabled

Housing material

Titanium alloy

Waterproof

Not supported

Relay

1 channel

Power input

12 V DC, <= 300 mA

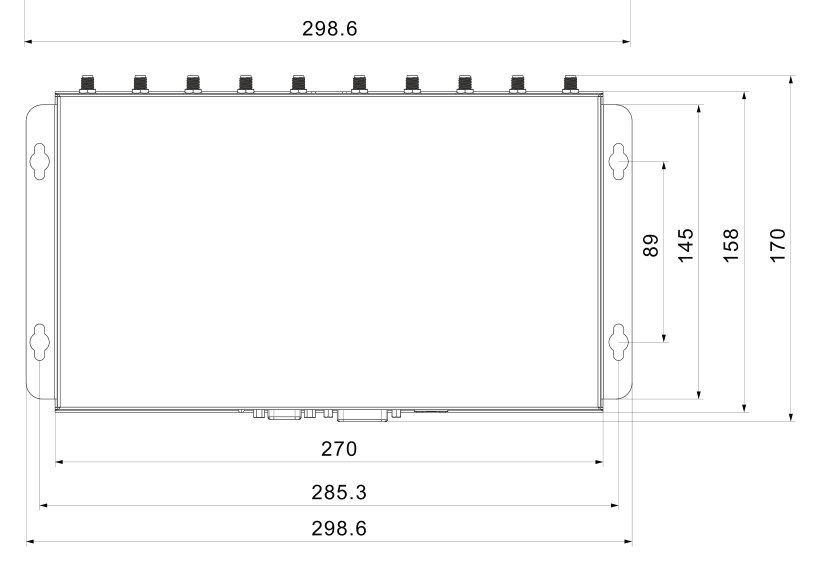

Physical size

298.6 x 170 x 38 mm

Package size

380 x 292 x 82 mm

Gross weight

RU6820 approx. 1500 g; RU6830 approx. 1550 g

Operating temperature

-20 C to 60 C

Storage temperature

-40 C to 85 C

Relative humidity

10%-95% RH, non-condensing
